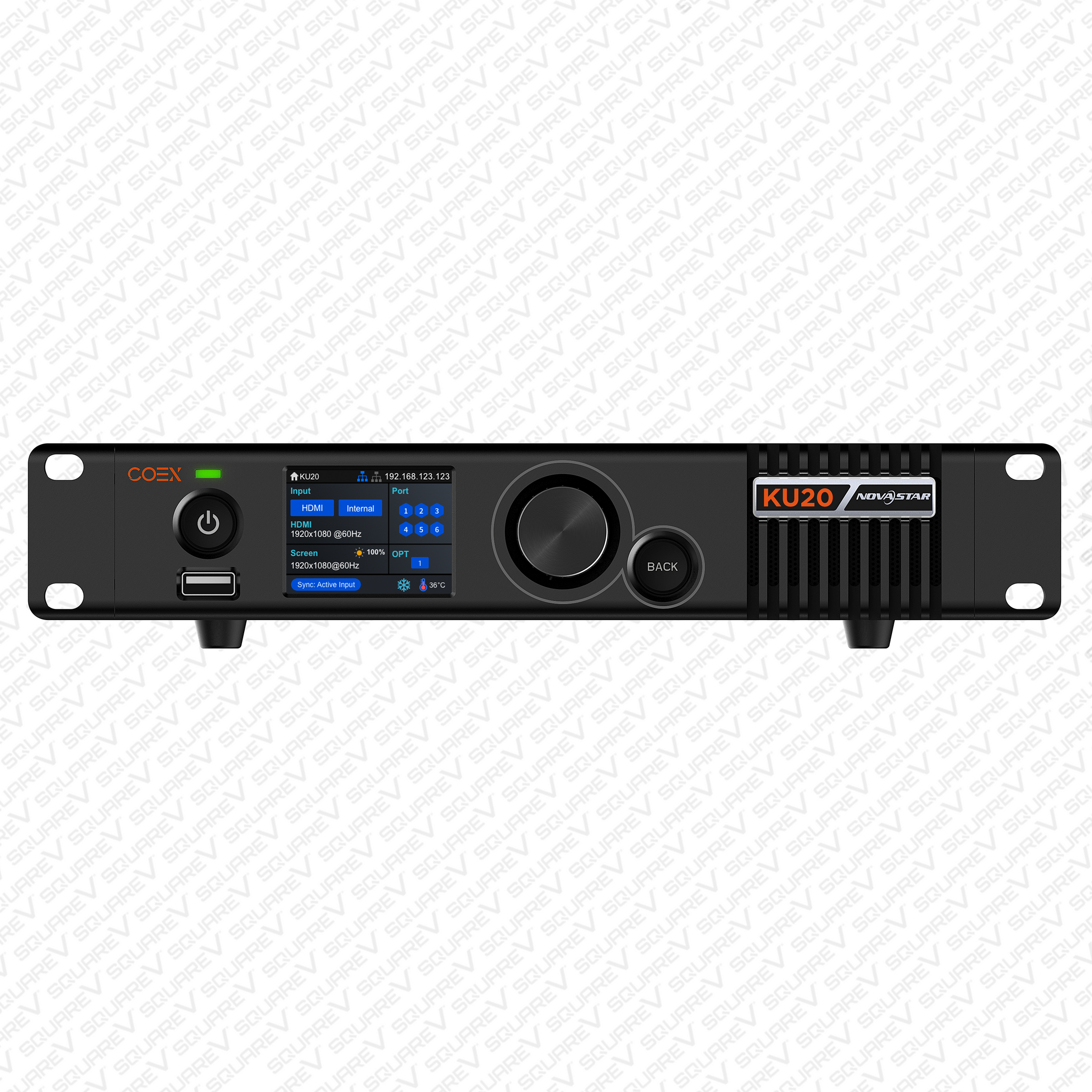

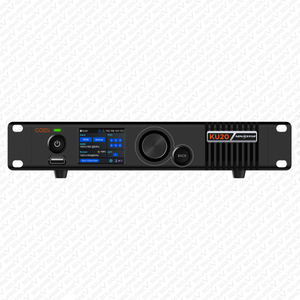

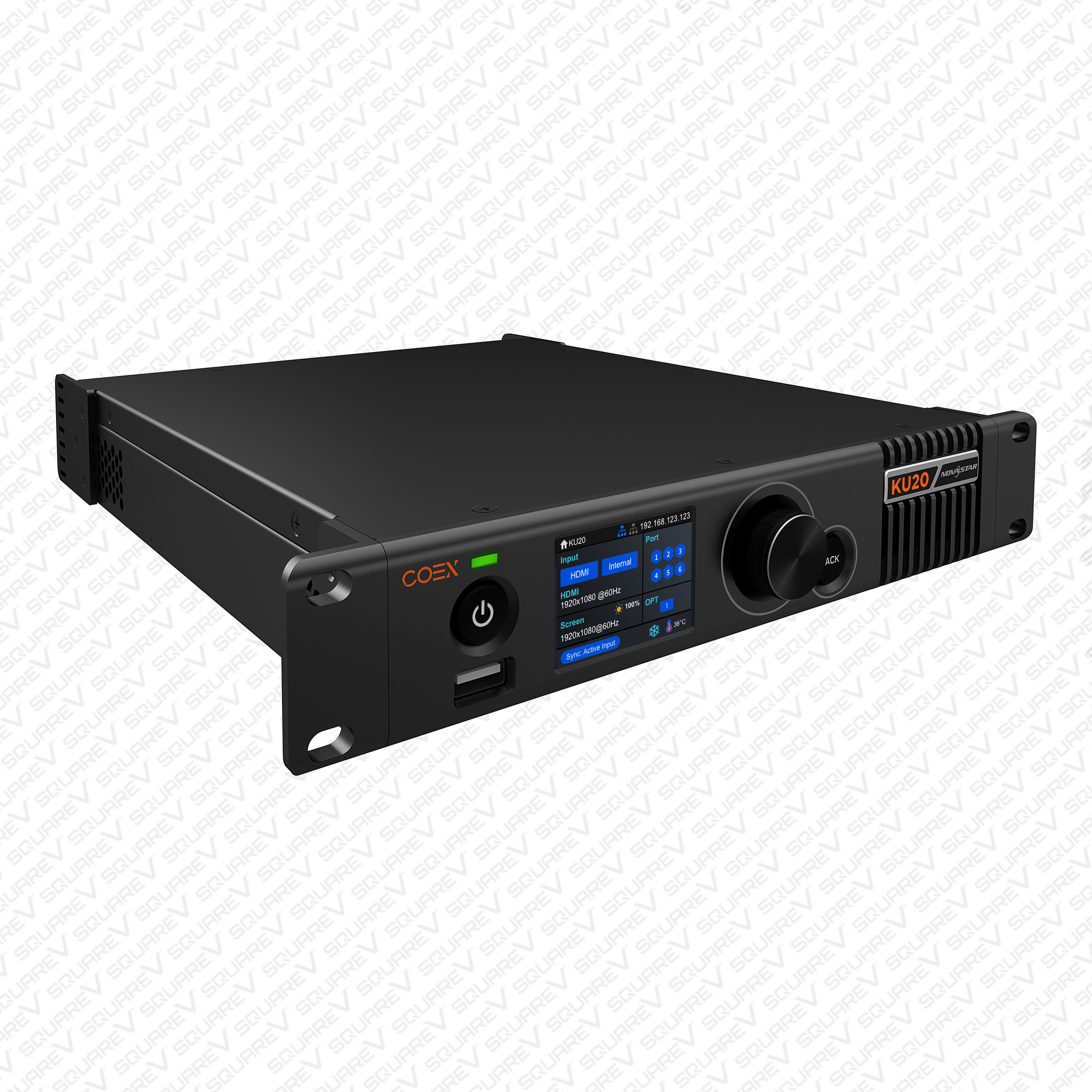

The KU20 is a cost-effective LED display controller in the new-generation control system COEX series. This controller offers 1x HDMI input, 6x Ethernet outputs and 1x optical output. It also works with the brand-new software: VMP (Vision Management Platform) to provide a better operation and control experience.
This is a 1/2 rack unit in width.
BUILT-IN SCALING (AUTO FIT CONTENT TO WALL): NO

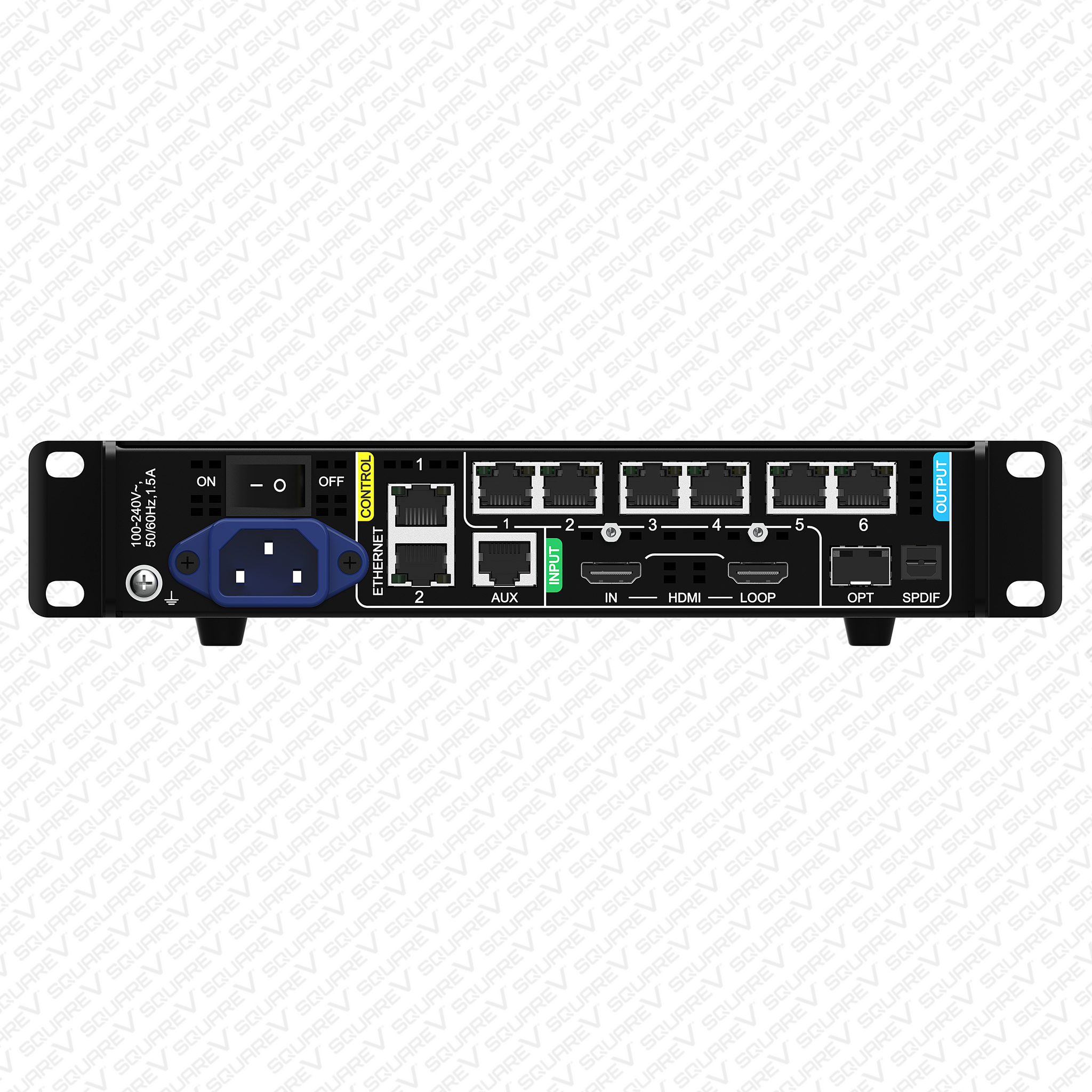

INPUTS: 1 - HDMI (In and Loop)
OUTPUTS: LED OUTPUTS - 6
LIGHT SENSOR: NO
GENLOCK: No
VIDEO LOOP: YES - HDMI Loop
MONITOR: NO
BUILT IN FIBER SLOTS: YES - (1) 10G SFP Output (OPT1 is LED OUT 1-6)
WINDOWS/LAYERS: NO
CONTROL:
ETHERNET (For communicating via network) / USB Type B (PC Control) /
LOADING CAPACITY:
MAX PIXELS PER LED OUTPUT: 650,000 pixels
TOTAL PIXELS: 2.3 million pixels
MAXIMUM INPUT RESOLUTION: 1920×1200 @60Hz
MAX OUTPUT WIDTH/HEIGHT: 3840 pixels x 600 pixels (W x H or H x W)
MINIMNUM OUTPUT WIDTH/HEIGHT: 800 pixels x 600 pixels
