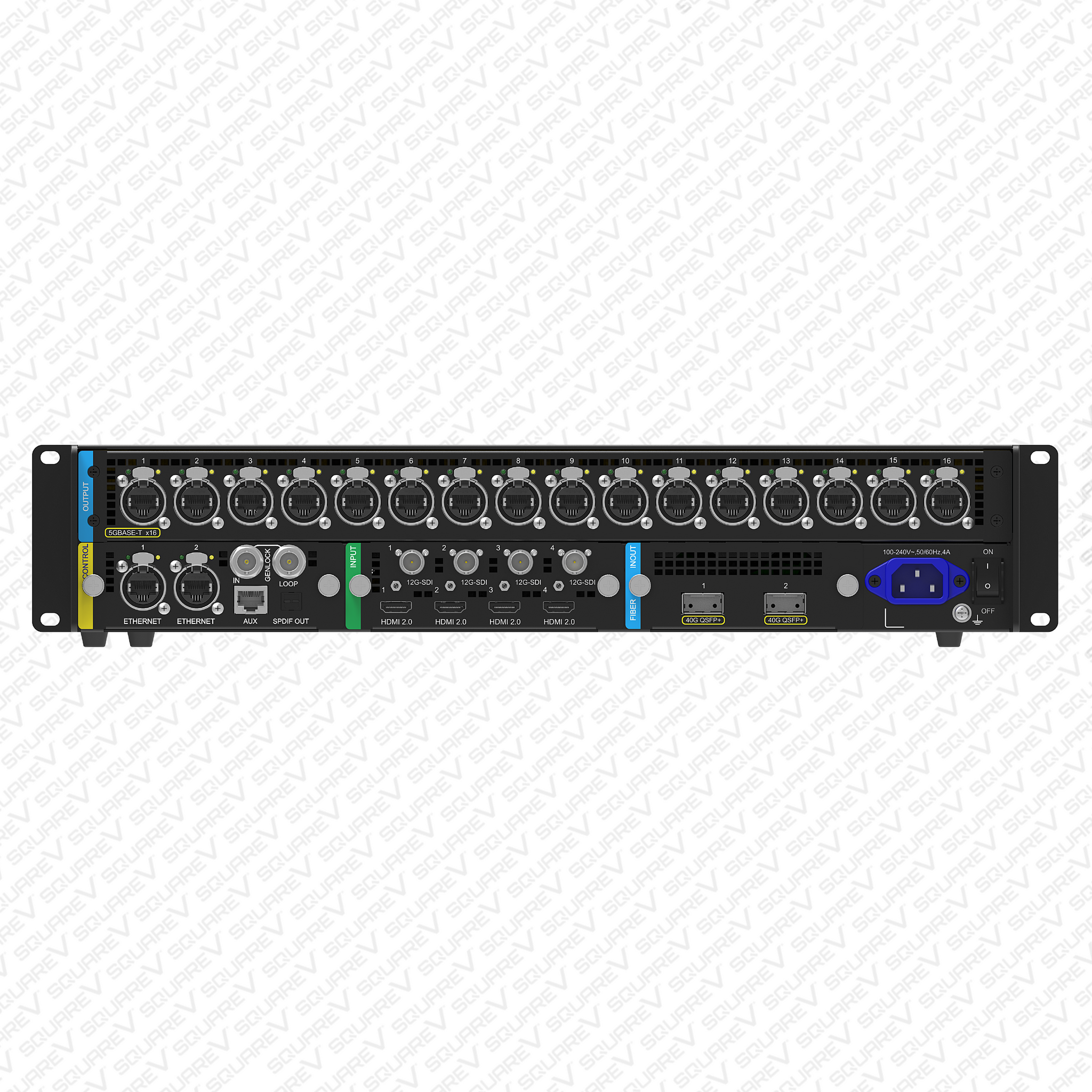

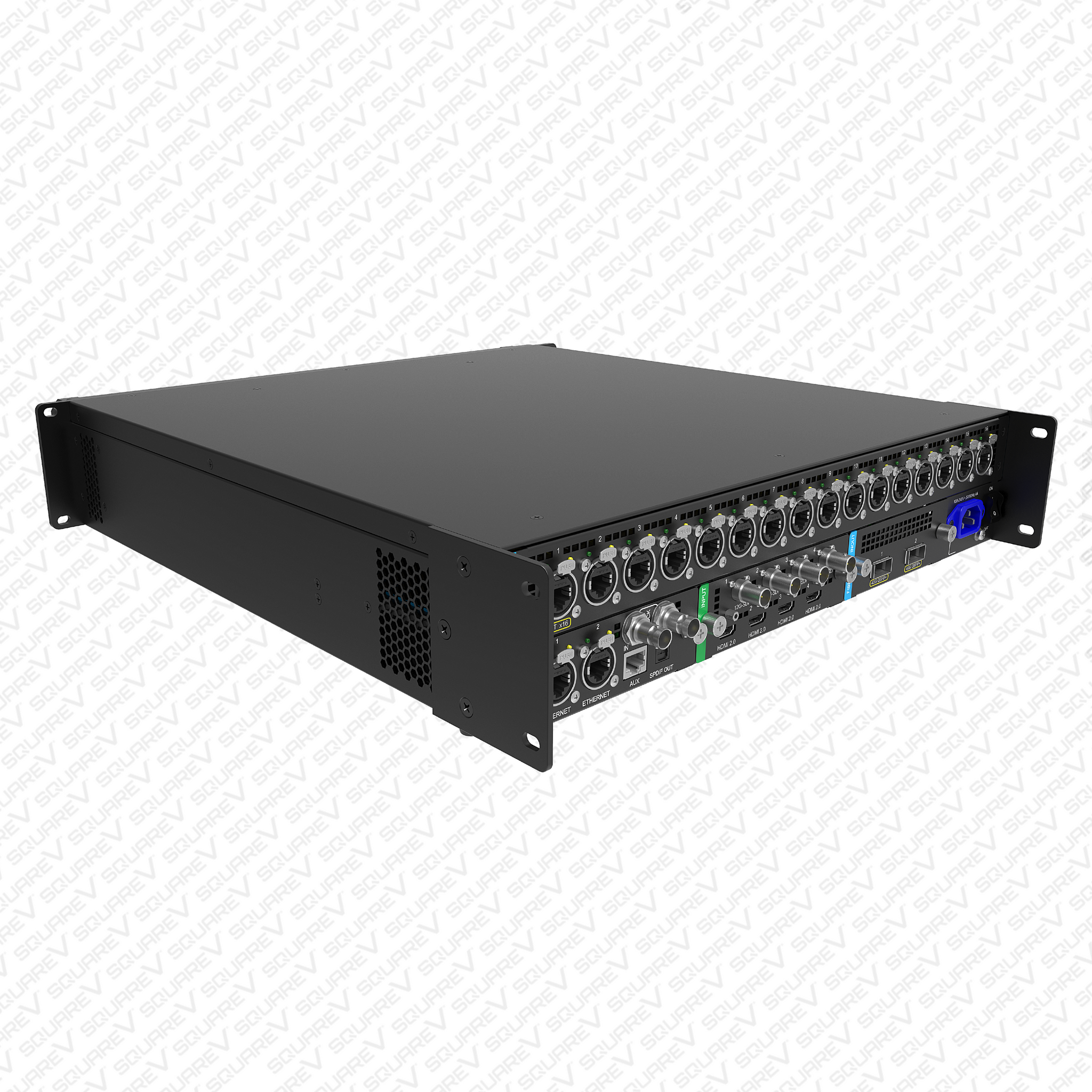

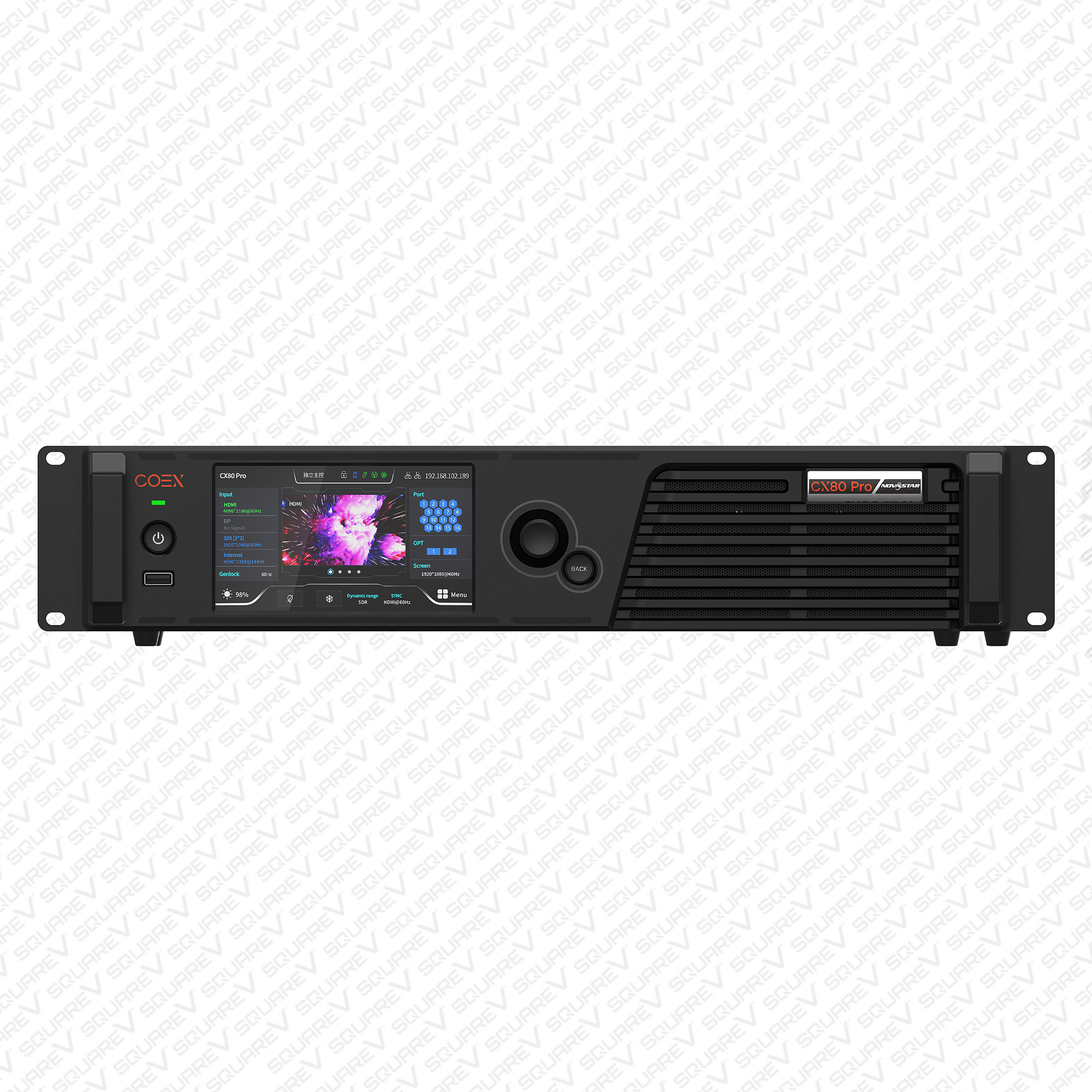

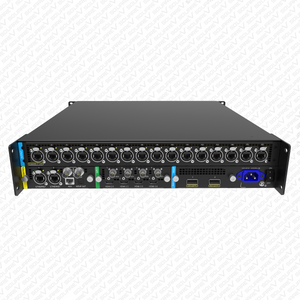

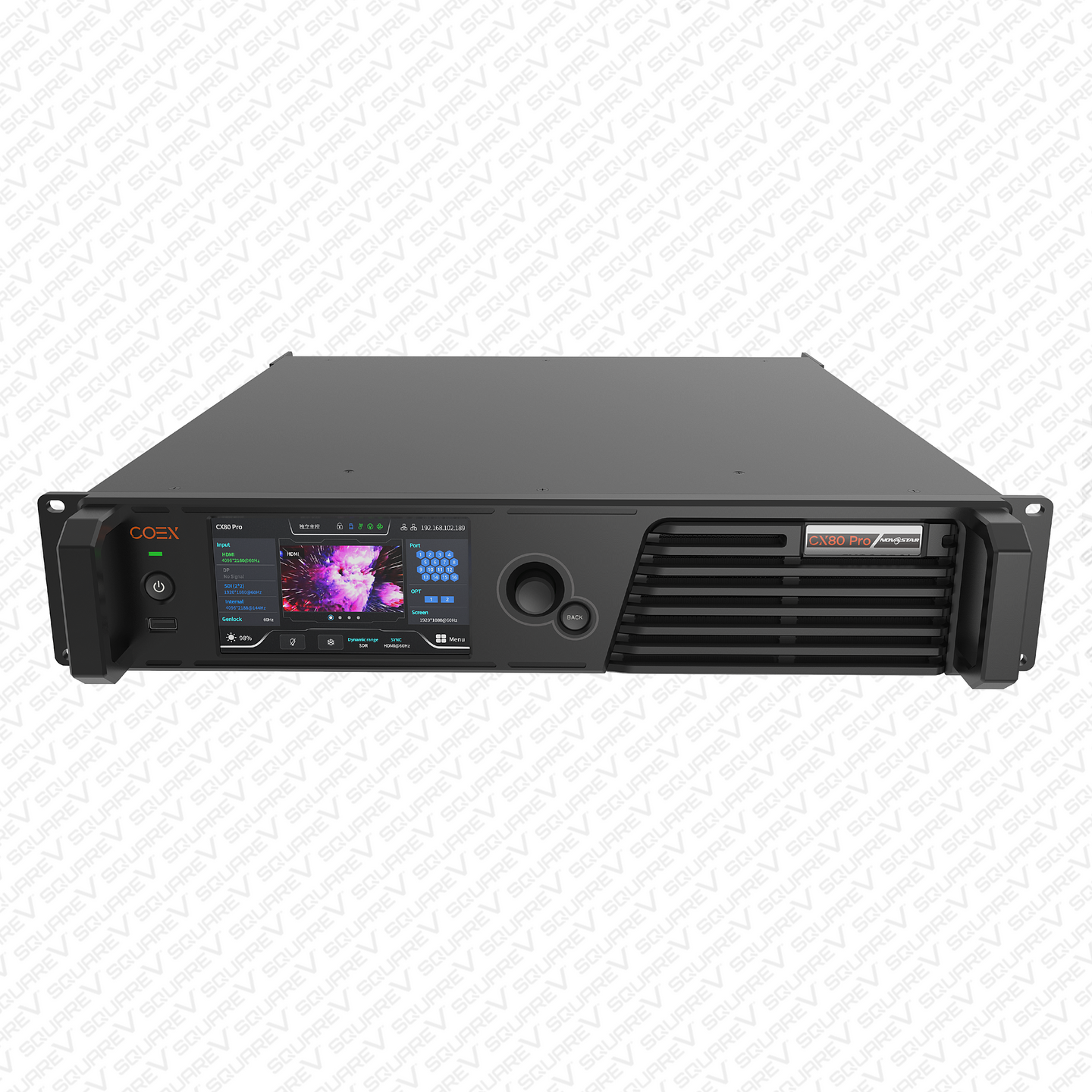

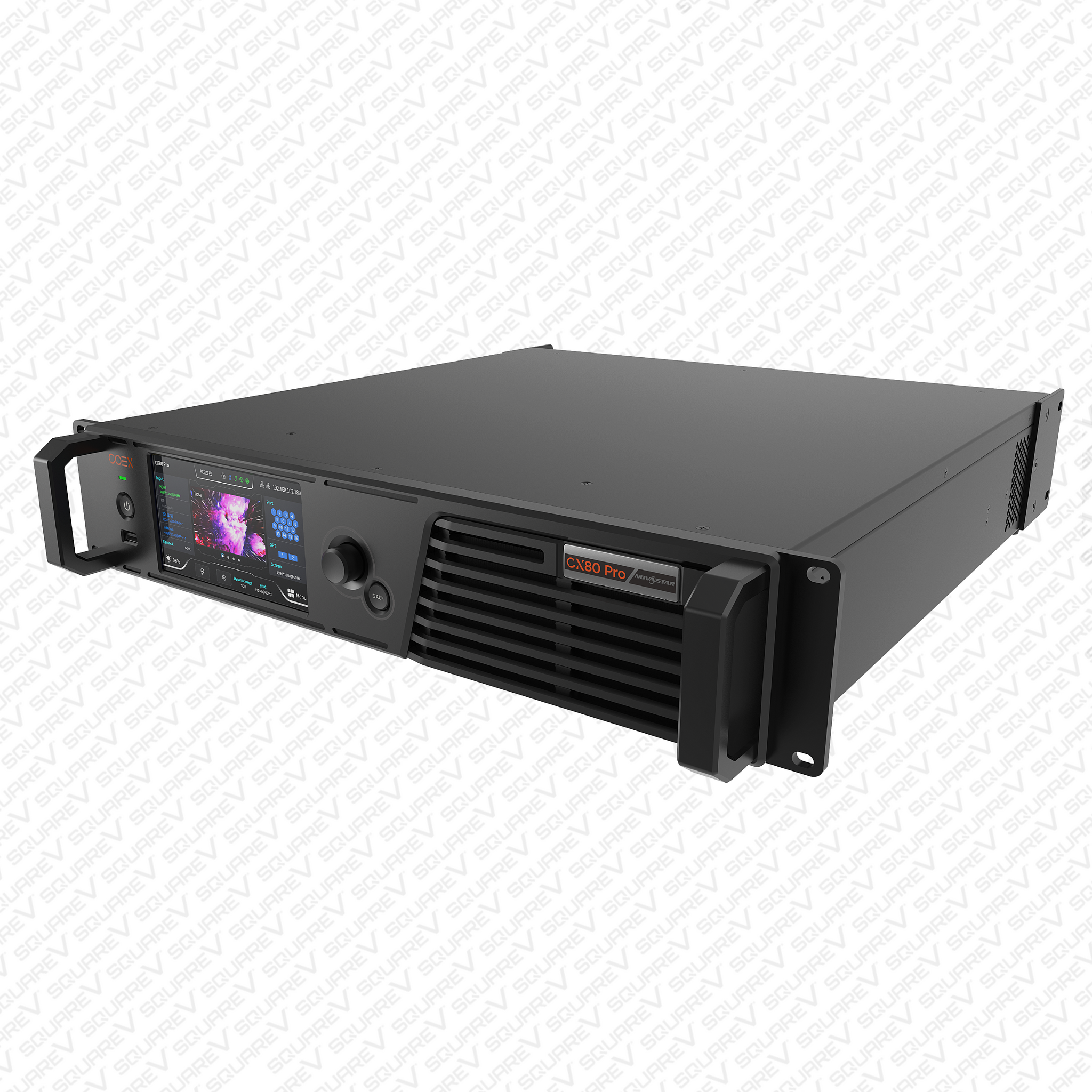

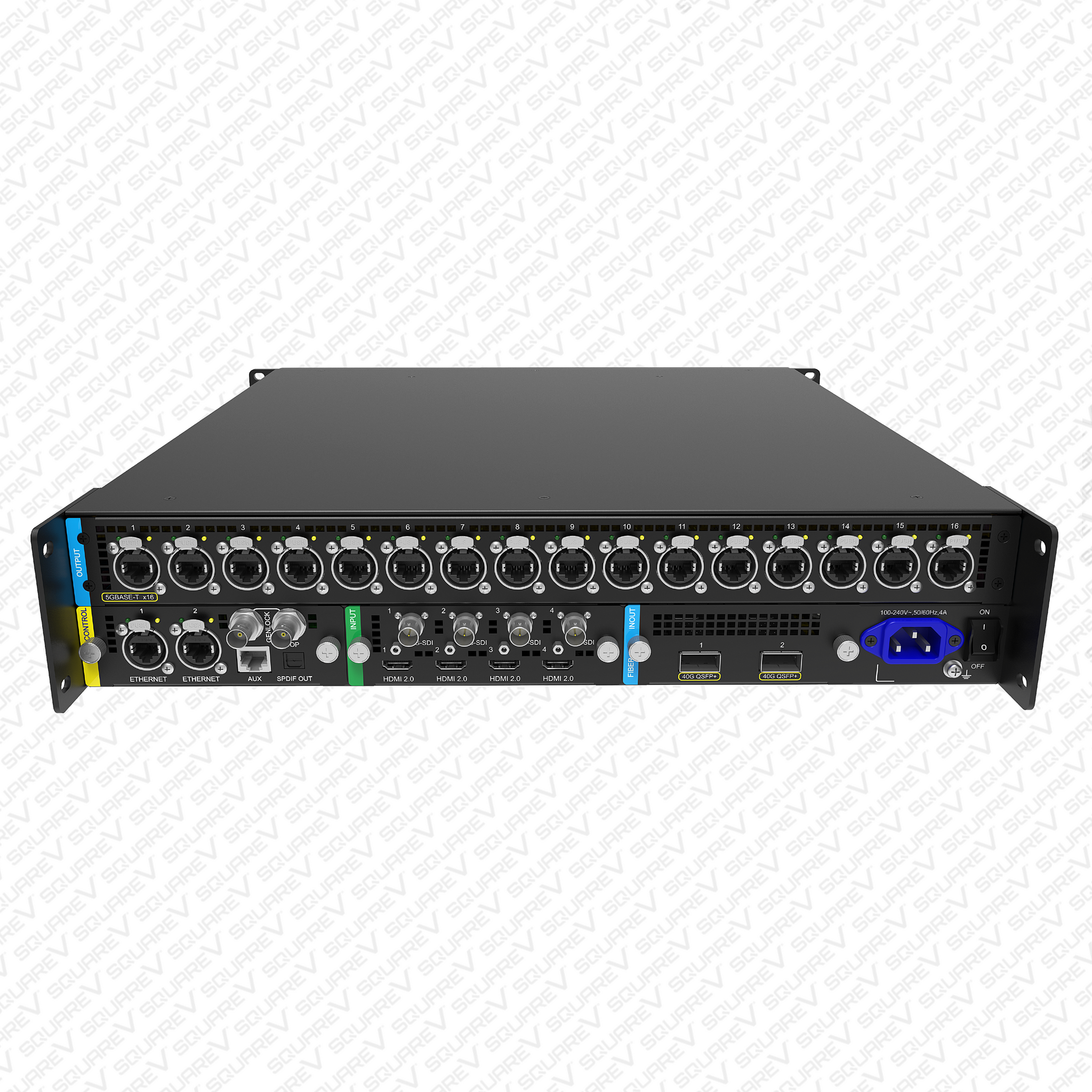

The CX80 Pro is NovaStar's new 8k LED display controller in their new COEX series. This controller offers rich video input connections (HDMI 2.0, HDMI 2.0, DP 1.4, and 12G-SDI) and supports 5Gbps output via ethernet ports. It also works with NovaStar's new VMP software.
The CX80 PRO includes features such as:
Genlock, Image Scaling, Color Replacement, 14CH Color Correction, 3D LUT, Dynamic Booster, Full Greyscale Calibration, HDR, Low Latency (1 frame in All-In-One Controller working mode)
NOTE: The CX80 PRO controller is only compatible with 5G receiving cards
The CX80 input card is sold separately. There are 2 to choose from (click on the card name to go to that product and add to your cart):
BUILT-IN SCALING (AUTO FIT CONTENT TO WALL): Yes
INPUTS: 1x HDMI 2.1, 1x DP 1.4, 4x 12G-SDI or 4x HDMI 2.0, 4x 12G-SDI
OUTPUTS: LED OUTPUTS - 16
GENLOCK: YES
IMAGE MOSAIC (MULT. PROCESSORS ON 1 WALL): YES
BUILT IN FIBER SLOTS: YES - 2 40G OPT Ports
CONTROL:
ETHERNET (2x ports)
LOADING CAPACITY:
MAX PIXELS PER LED OUTPUT at 60Hz: 2,592,000 pixels (8-bit), 2,073,000 pixels (10-bit), or 1,728,000 pixels (12-bit)
TOTAL PIXEL LOAD CAPACITY: 35,389,440 pixels
MAXIMUM INPUT RESOLUTION: 7680 x 4320 using HDMI 2.1 Input
MAX OUTPUT WIDTH/HEIGHT: 32,768 pixels x 32,768 pixels (W x H or H x W)
CLICK HERE TO DOWNLOAD THE COEX VMP SOFTWARE
