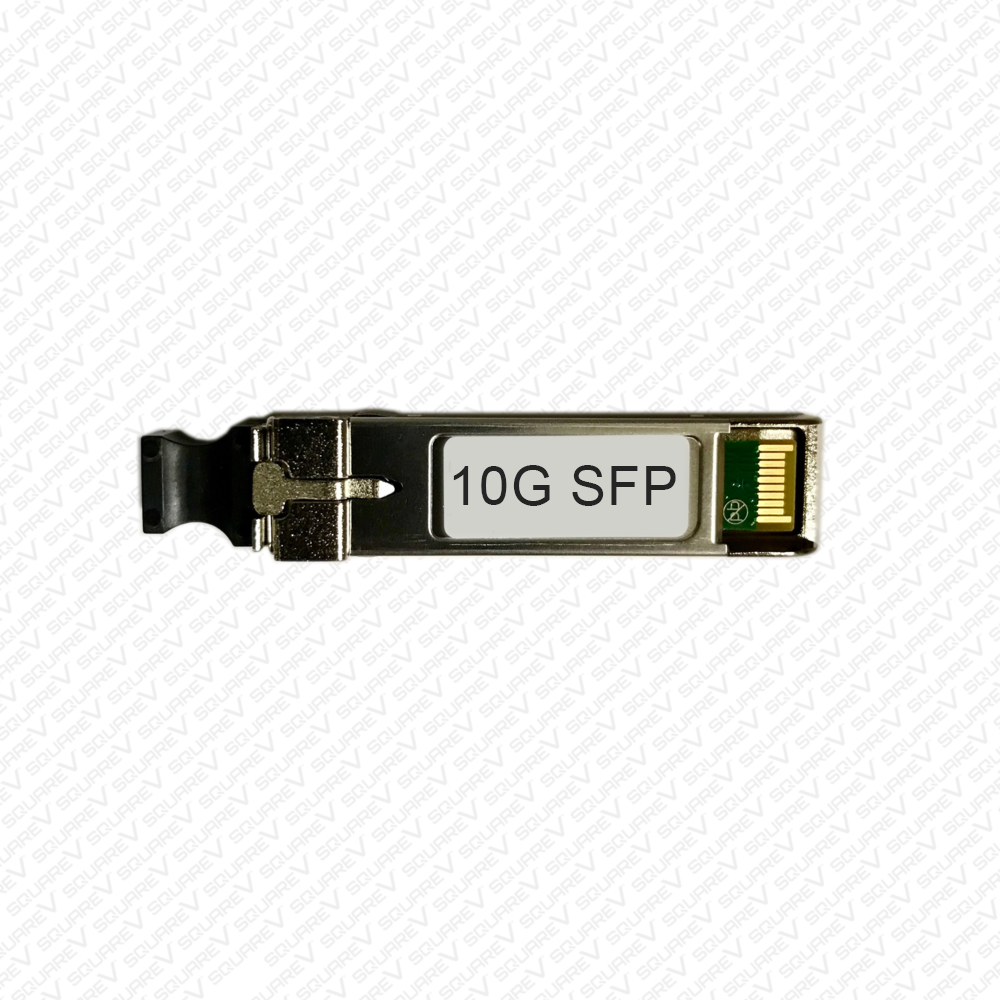

The 10G SFP Fiber Module fits into the empty fiber slots on the back of these products: MCTRL660 PRO, MCTRLR5, MCTRL4K, NOVAPRO UHD JR, KU20 (SU20), VX400, VX600, VX1000, MX30, MX20, MX40PRO, and H-Series.
1. MCTRL660 PRO: 2 Fiber Modules Needed
2. MCTRLR5: 2 Fiber Modules Needed
3. MCTRL4K: 4 Fiber Modules Needed
4. NOVAPRO UHD JR: 4 Fiber Modules Needed
5. KU20: 1 Fiber Module Needed
6. VX400: 2 Fiber Modules Needed
7. VX600: 2 Fiber Modules Needed
8. VX1000: 2 Fiber Modules Needed
9. MX30: 2 Fiber Modules Needed
10. MX20: 2 Fiber Modules Needed
11. MX40PRO: 4 Fiber Modules Needed
The proper configuration for a fiber setup is FROM THE PROCESSOR to the fiber converter via SINGLE MODE DUPLEX FIBER CABLES WITH LC CONNECTORS. Then, you can connect RJ45 Data Cables from the OUTPUT of the fiber converter to input of the video wall itself, just like you would connect them straight out of the processor when you aren't using fiber. You can also use some of the processors as fiber converters (in working mode: fiber converter).
