NovaStar H2 H Series Video Wall Splicer (All-In-One Splicer)
NovaStar H2 H Series Video Wall Splicer (All-In-One Splicer)
NovaStar H2 H Series Video Wall Splicer (All-In-One Splicer)

NovaStar H2 H Series Video Wall Splicer (All-In-One Splicer)

Brand: NovaStar

Regular price $569.00 On Sale

  • This product is temporarily out of stock. Please contact us for an ETA.

     Click the image above to see a NovaStar H Series overview video

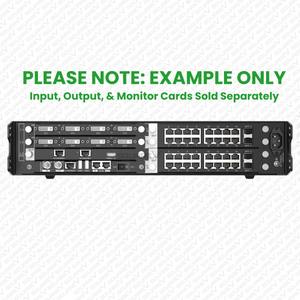

    * The pricing shown is for the empty frame only. All input and output cards sold separately and can be added using the "ADD INPUT & OUTPUT CARDS" section below. Be sure to scroll back up and click on "ADD TO CART" after selecting the input and output cards you'd like and quantities.

    * This product will always show out of stock and will be ordered as configured from the manufacturer after you complete the order. Please email jason@squarevled.com if you'd like to discuss your specific needs.



    NOVASTAR H SERIES VIDEO SPLICER FOR NARROW PITCH DISPLAYS

    The H series are NovaStar’s new generation video wall splicers that feature excellent image quality and are designed especially for fine-pitch LED screens. The H series products can work as splicing processors that integrate both video processing and video control capabilities, or work as pure splicing processors. The whole unit adopts modular and plug-in design, and allows for flexible configuration and hot swapping of input and output cards. Thanks to the excellent features and stable performance, the H series products can be widely used in applications, such as energy and power, judicial departments and prisons, military command, water conservancy and hydrology, meteorologic earthquake prediction, enterprise management, metallurgy of steel, banking and finance, national defense, public security traffic management, exhibitions and presentations, production scheduling, radio and television, educational and scientific research, as well as stage rental applications.





    Configured to your specific application...

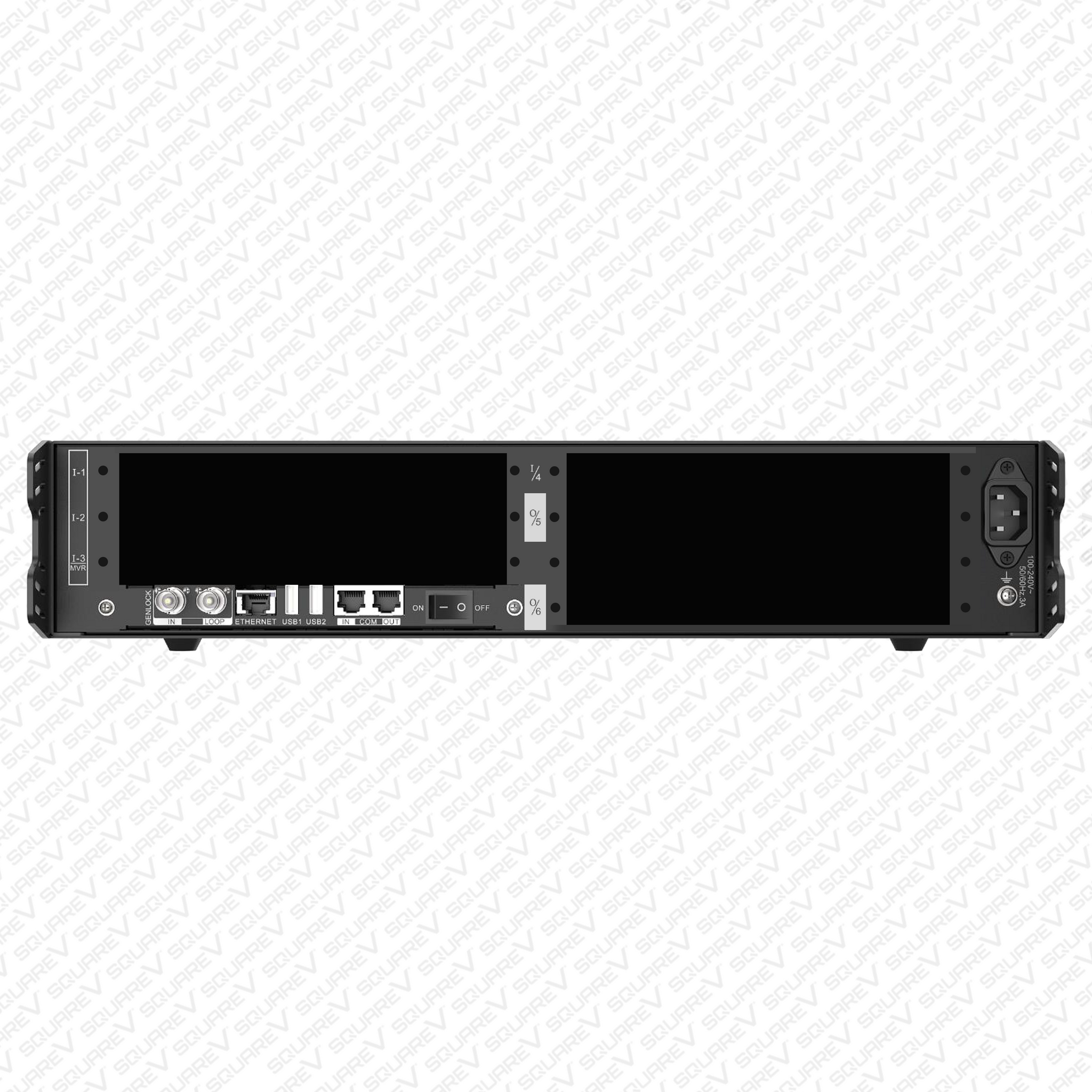

    Each frame includes the front panel with screen, one power supply, and control card (power switch, genlock in and loop, ethernet and usb ports for control, and RS232 ports for com).


    • H2:  Up to 3 input cards and up to 2 output cards

        • Loading capacity = 26,000,000 pixels
        • Max input channels = 12
        • Max number of screens = 8



    • Inputs cards available:
        • 4x DVI card
        • 4x HDMI card (2x HDMI 1.3 + 2x HDMI 1.4a)
        • 1x HDMI 2.0 + 1x DP 1.2 card (Only one connector can be used at a time)
        • 2x RJ45 Gigabit Ethernet card + 1x USB input
        • 4x 3G-SDI card
        • 1x 12G SDI IN + 1x 12G SDI Loop
        • Analog (VGA) card
        • 2x DP1.1 card
    • Output Cards:
        • Monitor output (MVR) card with 2x RJ45 Gigabit ethernet and 1x HDMI 1.3 monitor output
        • 16x RJ45 + 2x Fiber output card. 10,400,000 pixels loading capacity per card with a max width of 10,240 pixels and a max height of 10,240 pixels
        • 20x RJ45 output card.  13,000,000 pixels loading capacity per card with a max width of 10,752 pixels and a max height of 10,752 pixels



    NovaStar H Series Brochure

    NovaStar H2 Specifications

    NovaStar H Series User Manual
