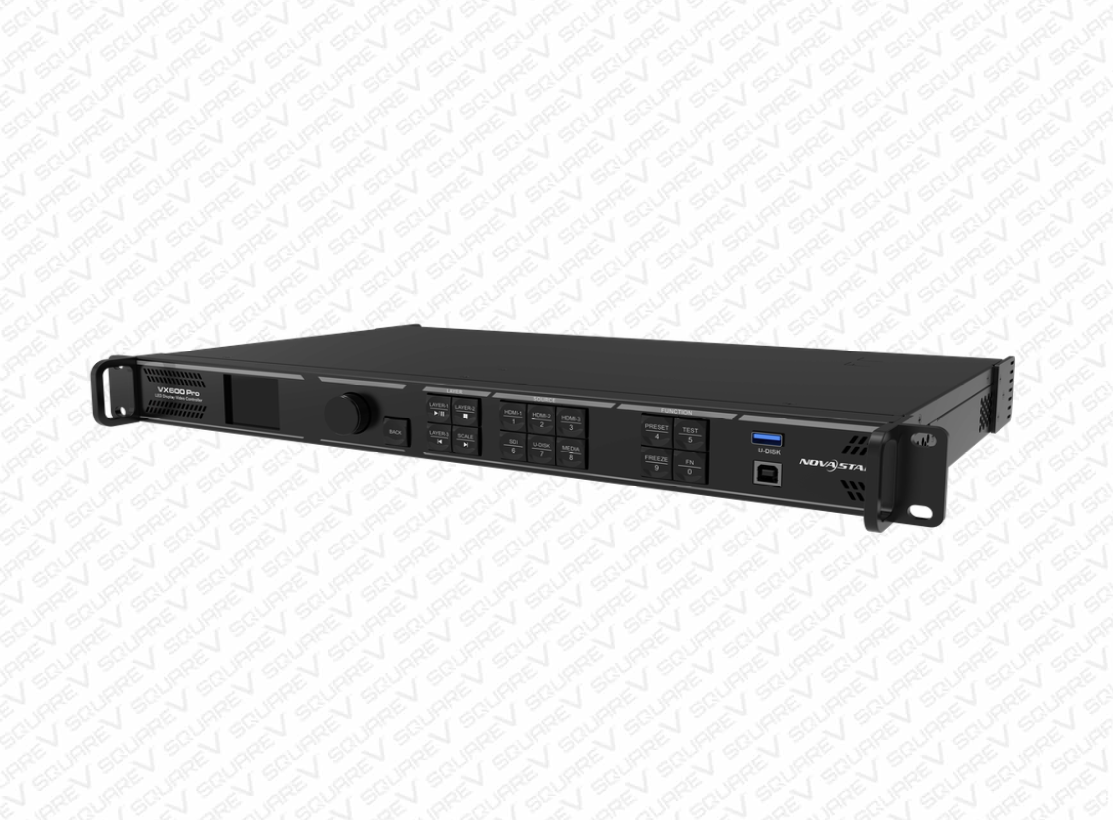

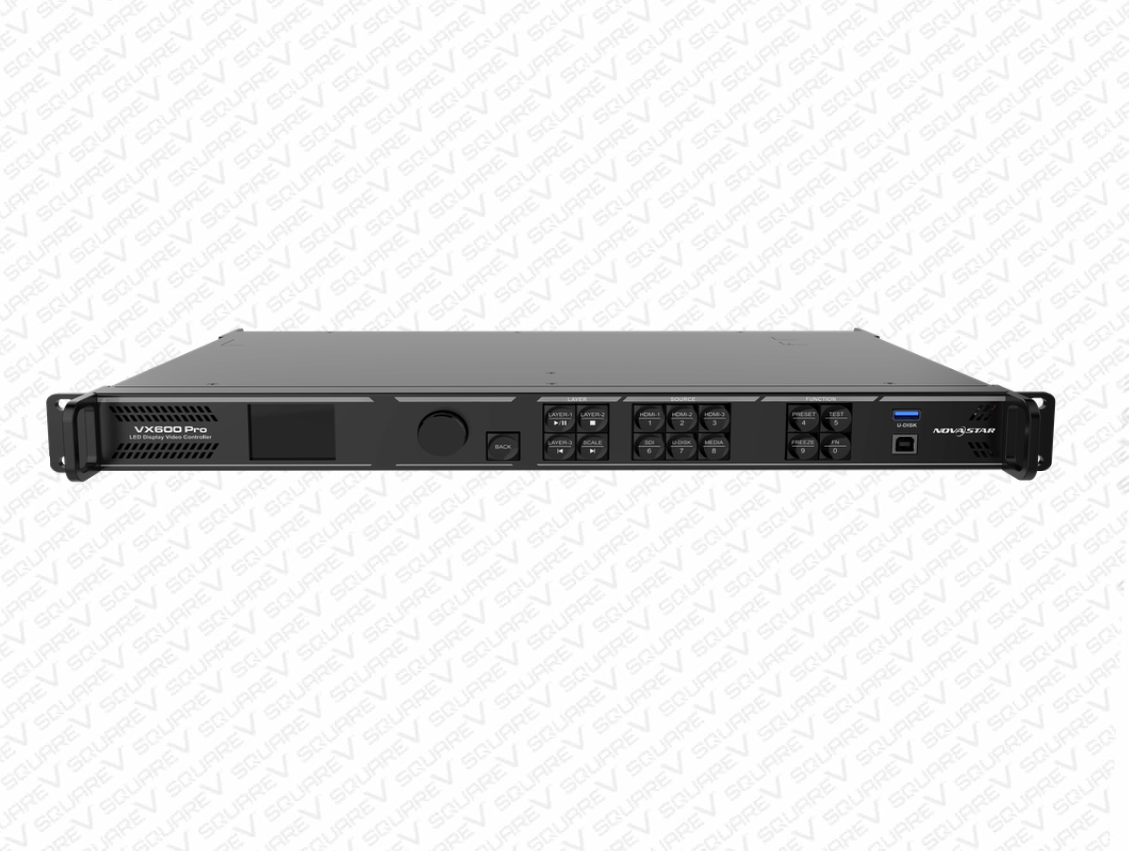

The VX600 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 6 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 3.9 million pixels, the VX600 Pro can output at a maximum width of 10,240 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site.
The VX600 Pro boasts powerful video signal reception and processing capabilities, supporting a maximum resolution of 4K×2K@60Hz for video input. It can handle multiple video signal inputs and includes features like 6 layers, output scaling, low latency and pixel-level brightness and chroma calibration. These functions combine to deliver outstanding image display quality.
With various control options available, the VX600 Pro can be operated via the front panel knob, NovaLCT, Unico web page and VICP app, providing you with a convenient and effortless control experience.
The VX600 Pro is housed in an industrial-grade casing, which, combined with its powerful video processing and transmission capabilities, makes it robust and well-suited for complex operational environments. The VX600 Pro is a perfect fit for medium and high-end rental, stage control systems and fine-pitch LED screens.
BUILT-IN SCALING (AUTO FIT CONTENT TO WALL): YES

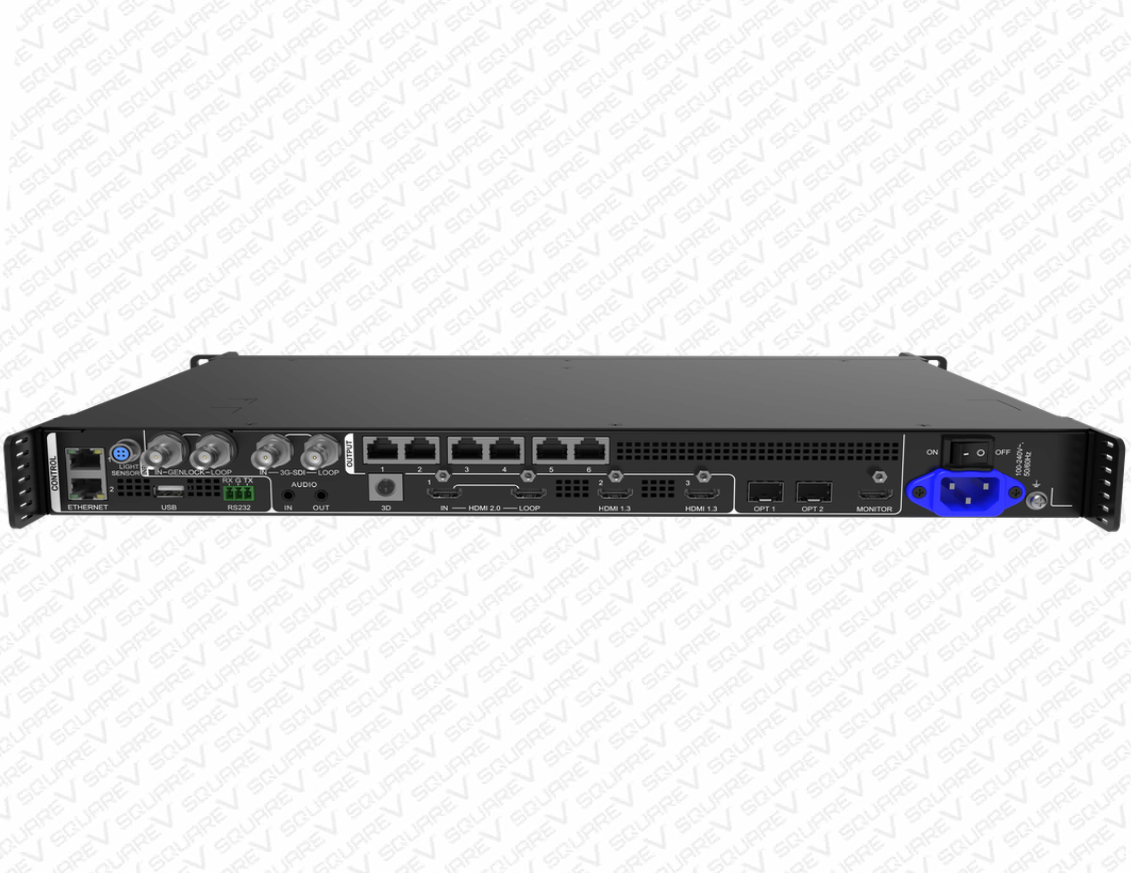

INPUTS: 6 - HDMI 2.0, (2) HDMI 1.3, 3G-SDI, OPT, USB 3.0 (Play images or videos saved in a USB drive)
OUTPUTS: LED OUTPUTS - 6
GENLOCK: Yes
VIDEO LOOP: HDMI 2.0 LOOP, SDI LOOP
MONITOR OUT: HDMI
BUILT-IN FIBER SLOTS: YES (1 PRIMARY & 1 BACKUP)
WINDOWS/LAYERS: 6 (2k x 1k)
CONTROL:
ETHERNET (For communicating via network, Cascading Multiple Devices for simultaneous PC Control)
USB 2.0
RS232
Light Sensor
LOADING CAPACITY:
MAX PIXELS PER LED OUT (PORT): 650,000 pixels
TOTAL PIXELS: 3.9 million pixels
MAXIMUM INPUT RESOLUTION: 4096 x 2160 @ 60Hz (HDMI 2.0)
MAX OUTPUT WIDTH/HEIGHT: 10,240 pixels x 8,192 pixels (W x H or H x W)
